SUND series aluminum container production line

SUND series aluminum container production line

SUND series Aluminum container production line, which is for making the Aluminum foil container/box/tray, the finished products are widely used in the packaging of aviation food, home cooking and cake food.

Description:

SUND series Aluminum container production line, which is for making he Aluminum foil container/box/tray, the finished products are widely used in the packaging of aviation food, home cooking and cake food.

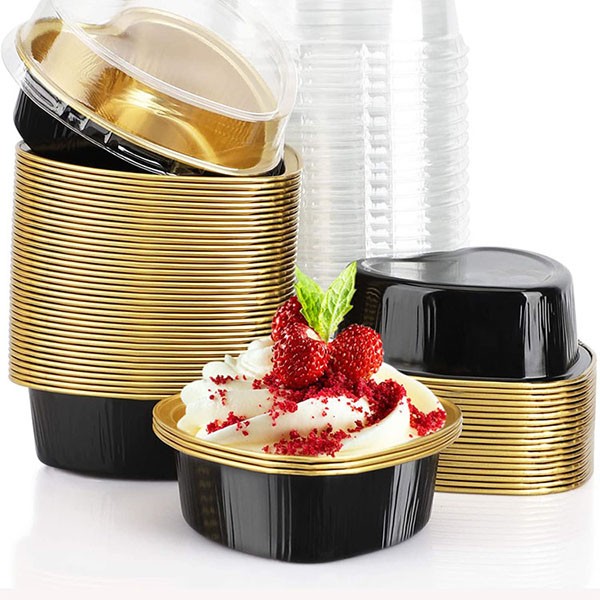

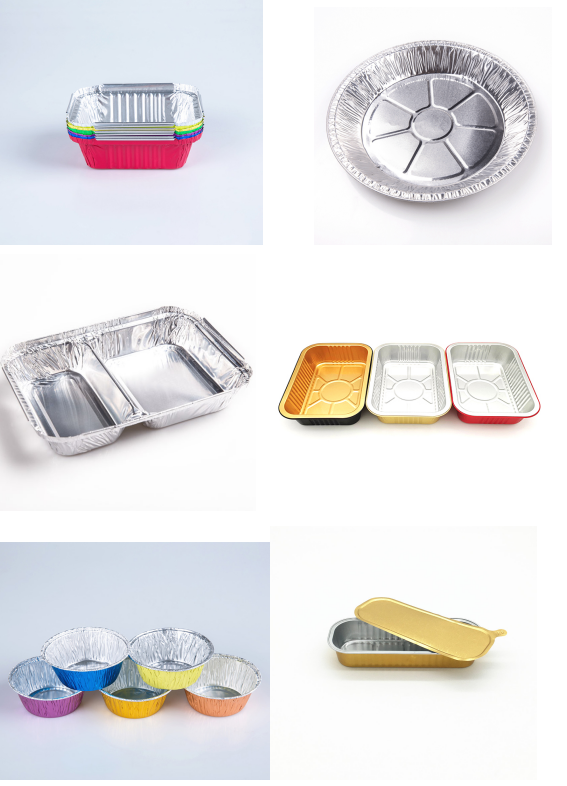

Main uses: food cooking, baking, freezing, fresh-keeping, etc. Aluminum foil lunch boxes usually use 8011 aluminum alloy or 3004 aluminum alloy, plain foil and oil foil.

The product is light in weight and meets the national food hygiene standards. Moreover, it is convenient to recycle, no harmful substances are produced during the treatment process, and no renewable resources are polluted.

Components:

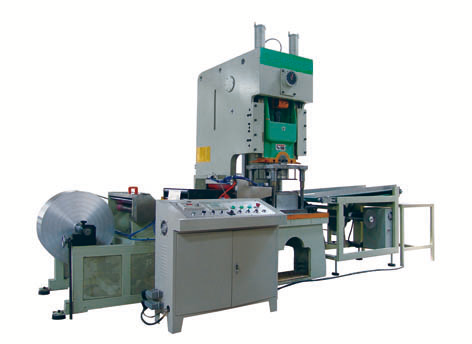

SUND series Aluminum container Production Line is composed of auto-lubricated feeder, length controller, control panel, pneumatic punch, mould, collecting table of finished product and scrap presser.

Specification:

Machine Model	SUND- AL45T	SUND-AL63T
Sheet Materials	Aluminum alloy (3004/8011)	Aluminum alloy (3004/8011)
Sheet Width	Max.500mm	Max.880mm
Sheet roll diameter	Φ650mm	Φ1000mm
Feeding tolerance:	+/-0.1mm	+/-0.1mm
Adjusted height of die setting	60mm	80mm
Working Pressure	450KN	630KN
Production capacity	40-70 times/min	40-75 times/min
Motor Power	5.5 Kw	11 K w
Total Weight	4.6 ton	10.6 ton
Power supply	380V/3P/4L/50HZ	380V/3P/4L/50HZ
Overall Dimensions	Feeding part:1200x1200x 1100 mm Length controller: 700x720x 550 mm Pneumatic punch: 1500x1125 x 2315 mm	Feeding part: 1200x1200x 1100 mm Length controller: 700x720x 550 mm Pneumatic punch: 2200x1800x 3400 mm
