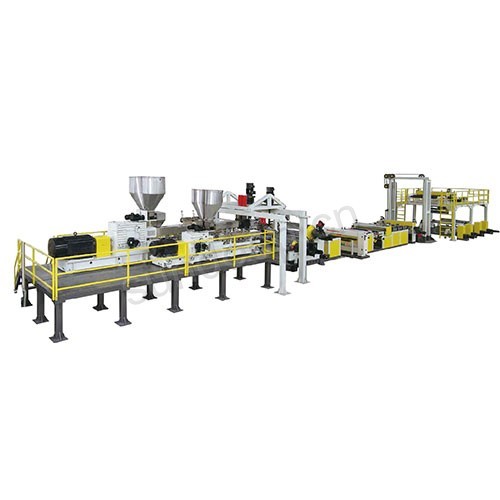

SUND-PET 1000 PET Sheet Extruder

This plastic sheet extruder specialized in producing PET sheet (APET, PETG, CPET), which with the features of high transparency, barrier property, non-toxic, and non-environmental pollution. The PET sheet is also very easy to be recycled.

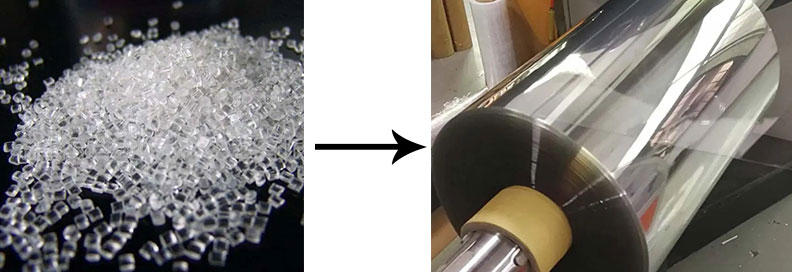

From pet granules to final pet sheet roll:

Description:

Besides PP, PS plastic sheet are used for thermoforming purpose, the market is in great demand for PET sheet as well, the finished PET products looks very nice in high transparency.

The PET extrusion line adopts double twin screw parallel system which improves the capacity by 30-50%, and this is the best option for making recycled raw material. But if you mainly use virgin raw material, we suggest you choose single screw design. We can also customize the machine for different requirement in sheet width and output.

For more models and detailed information, please feel free to contact info@sundeep.cn, whatsapp/wechat +86 13375778695

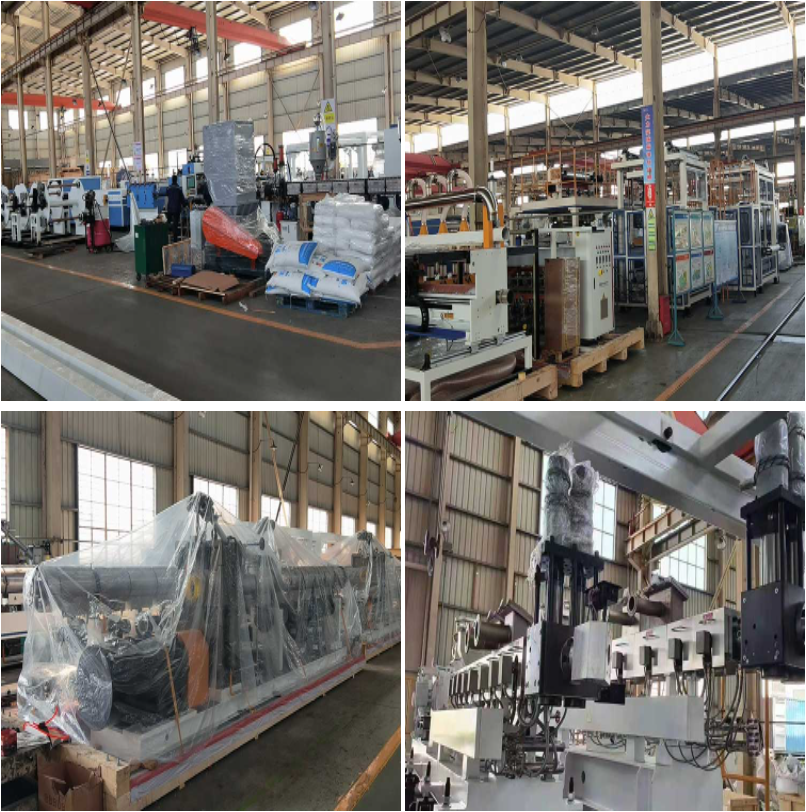

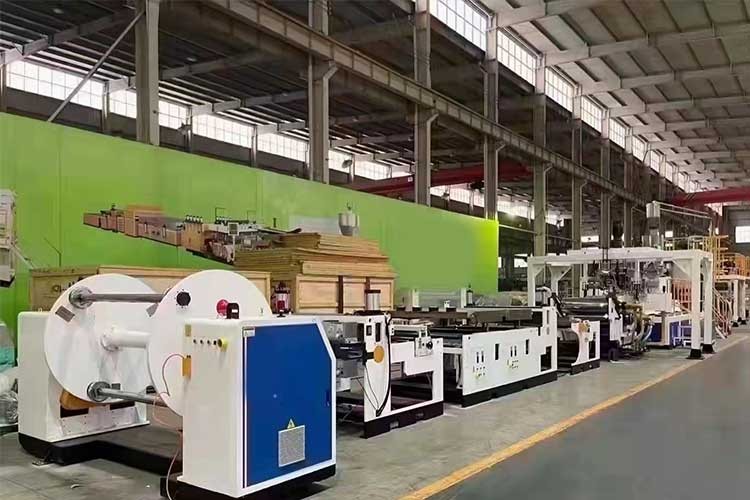

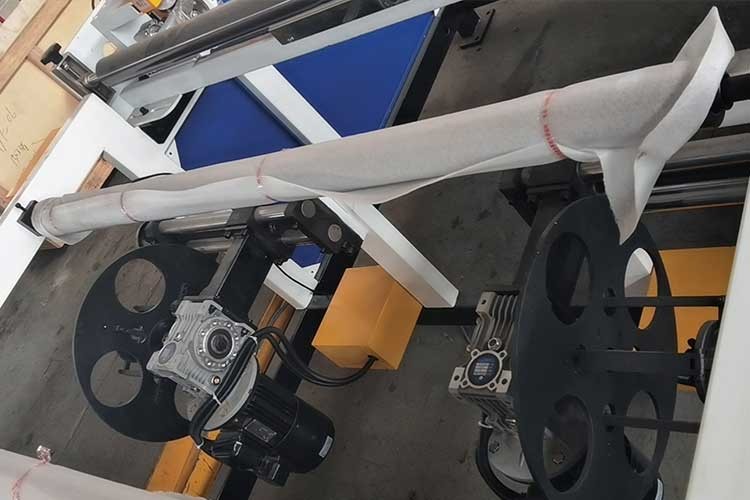

Workshop photos collection:

Usage in different filed:

General use: for file folder, file cover, credit card.

Vacuum forming use: food package, toy box, stationery case, gift box, tool and hardware packing.

Barrier property use: for electronic components packing.

Special use: for medicine packing, medical instrument, microwave oven tray (CPET).

Specification:

Model	SUND-PET 1000
Applicable Material	PET, PLA, PP, PE
Width of Sheet	1000 mm
Thickness of Sheet	0.2-1.5 mm
Screw Diameter	71 mm
Screw L/D	40:1
capacity	350-450 kg/h
Air pressure	0.6-0.8 Mpa
Water	10°C-12°C, 15m³/h or 20°C-25°C, 30m³/h
Total Power	200 kw
Machine size	25m1.8m2.2 m
Machine weight	30000kg
