We have two type of paper plate machine, one is pneumatic type, another is hydraulic type.

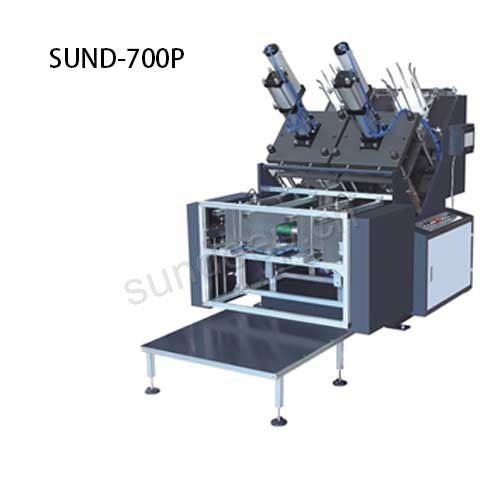

SUND-700P Automatic Paper Plate Forming Machine (pneumatic type) with the integrated pneumatic and mechanic technologies, adopts high efficient pressurizing air cylinder, so that the Max. pressure can reach to 5T , which makes the machine operation more safe, more environment-friendly, also machine price is more lower; While for SUND-800H Automatic Paper Plate Forming Machine (hydraulic type), which is more stable & fast running, energy-saving, more convenient for maintenance, but the machine price is some higher.
Description:
We have two type of paper plate machine, one is pneumatic type, another is hydraulic type.
SUND-700P Automatic Paper Plate Forming Machine (pneumatic type) with the integrated pneumatic and mechanic technologies, adopts high efficient pressurizing air cylinder, so that the Max. pressure can reach to 5T , which makes the machine operation more safe, more environment-friendly, also machine price is more lower; While for SUND-800H Automatic Paper Plate Forming Machine (hydraulic type), which is more stable & fast running, energy-saving, more convenient for maintenance, but the machine price is some higher.
So customers can choose the models accordingly by his own prefer, both models are with two/four working stations, each station install one set of mold and each station has separately PLC digital control and electric control. Also the machine can connect with the packing machine to do fast online packing
The machines are widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangular, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.

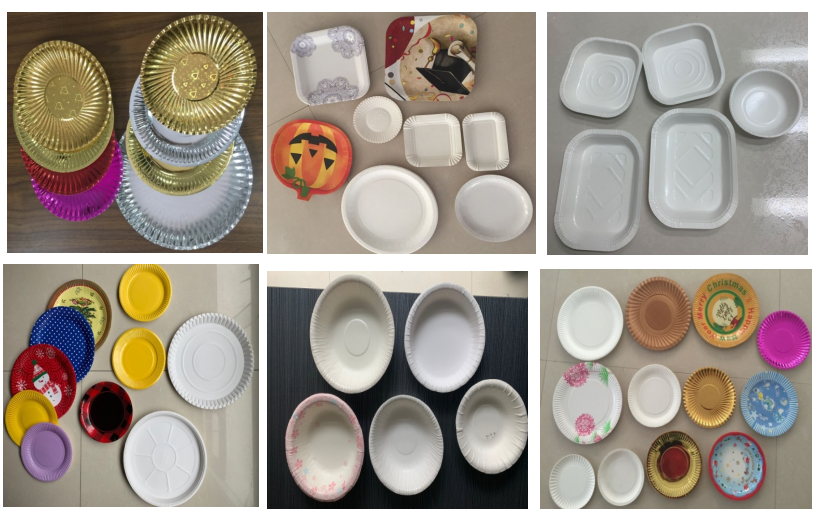

Paper plate sample collection:
Specification:
Machine model | SUND-700P pneumatic type | SUND-800H hydraulic type |
Suitable material: | 100-500gsm base paper ,cardboard ,ivory board ,aluminum foil paper or others
| |
Production speed: | 80-100pcs/min (double station) | 80-120pcs/min (double station) |
Blank paper size: | Max paper unfold diameter size 300mm | |
Plate specification: | 5 inch to 14inch
| |
Power/air consumption: | Motor: 1.5kw; heating: 3kw | Air pressure: 0.6Mpa; air consumption: 1cbm/min
|
Machine weight: | 1800kg | 1500kg
|
Machine size: | 2150*1650*1900mm | 2600*1450*1800mm
|
Power supply: | 380V/3 Phase/50HZ
| |
For machine more models, please contact info@sundeep.cn or whatsapp/wechat +86 13375778695 | ||

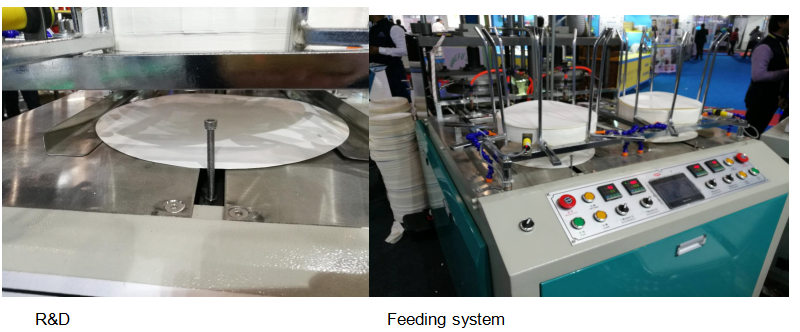

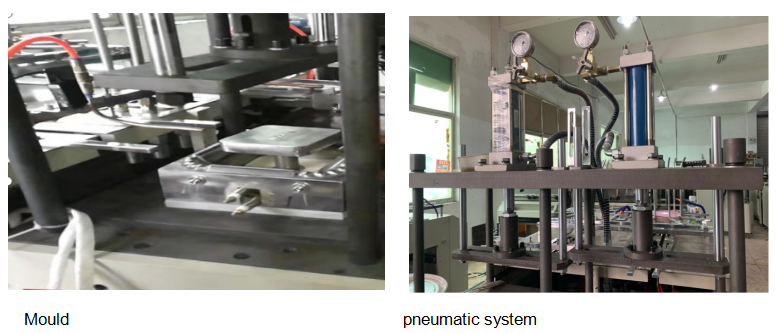

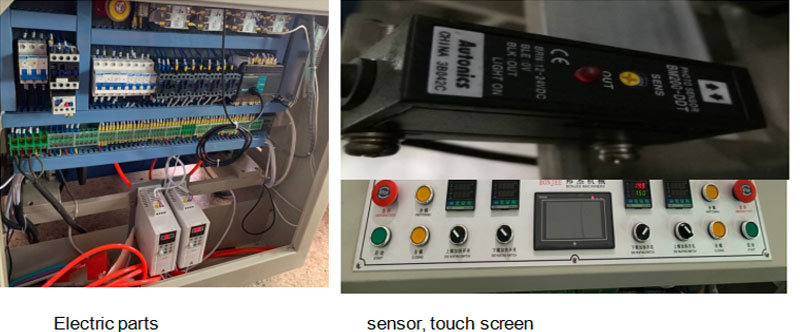

Machine parts in details:
