SUND series Square Bottom Paper Bag Machine With Handle Inline

SUND series Square Bottom Paper Bag Machine With Handle Inline

This machine is designed for the production of paper bags with twisted handles, or it can do the paper bags without handles. It is suitable for mass production of shopping bags in industries such as food bag and clothing bag.
The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making; and the bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery.
The square bottom paper bag with handles preferred by the majority of printing and packaging suppliers; while for the paper bag without handles, they are usually used as environment-friendly bag for leisure food, bread, dried fruit etc packages.

Description:

The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making; and the bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery.

The square bottom paper bag with handles preferred by the majority of printing and packaging suppliers; while for the paper bag without handles, they are usually used as environment-friendly bag for leisure food, bread, dried fruit etc packages.

Highlight:

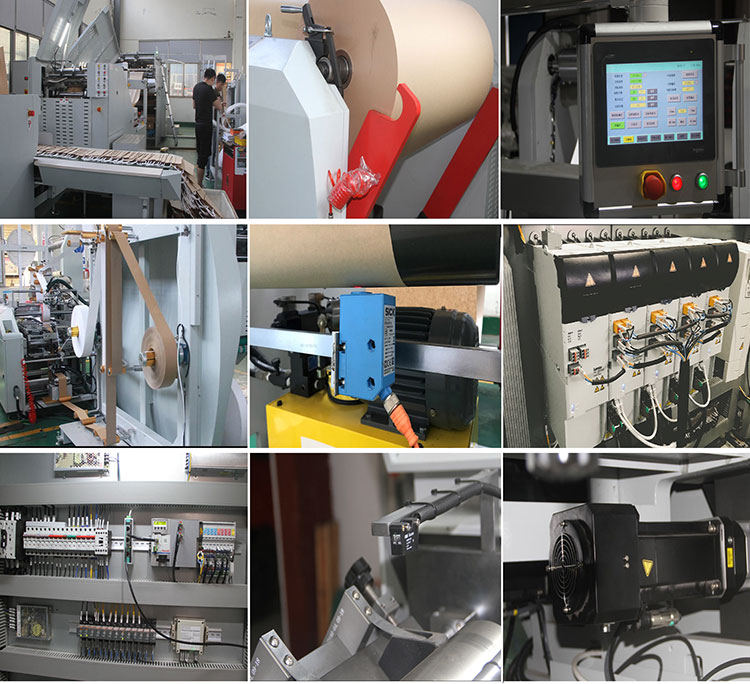

√ Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
√ Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.
√ Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.

√ Adopt German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve.
√ Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
√ Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.

Specification:

Machine Model	SUFD-330T	SUFD-450T	SUFD-450BT
Cutting Length	270-530mm	270-530mm	380-760mm
Cutting Length(Handle)	270-430mm	270-430mm	380-660mm
Bag Width	120-330mm	210-450mm	220-450mm
Bag Width(Handle)	200-330mm	210-450mm	240-450mm
Bottom Width	60-180mm	90-180mm	100-200mm
Paper Thickness	60-150g/㎡	80-150g/㎡	80-150g/㎡
Paper Thickness(Handle)	80-150g/㎡	80-150g/㎡	80-150g/㎡
Paper Roll Width	380-1050mm	590-1290mm	630-1370mm
Paper Roll Width(Handle)	620-1050 mm	670-1290mm	710-1370mm
Roll Paper Diameter	Φ1200mm	Φ1200mm	Φ1200mm
Paper Core	Φ76mm	Φ76mm	Φ76mm
Patch Length	152mm	190mm	190mm
Patch Width	50mm	50mm	50mm
Handle Distance	75mm	95mm	95mm
Rope Diameter	Φ3-5mm	Φ3-5mm	Φ3-5mm
Patch Paper Roll Width	100mm	100mm	100mm
Patch Paper Roll Diameter	Φ1200mm	Φ1200mm	Φ1200mm
Patch Paper Thickness	100-135g/㎡	100-135g/㎡	100-135g/㎡
Mechanic Speed	30-200bags/min	30-180bags/min	30-150bags/min
Production Speed For Bags Without Handles	30-180bags/min	30-150bags/min	30-120bags/min
Production Speed For Bags With Handles	30-150bags/min	30-130bags/min	30-130bags/min
Bottom Folding Type
Cutting Knife	Sawtooth cutting	Sawtooth cutting	Sawtooth cutting
Power Supply	380v 3phase 4 line 41.5kw	380v 3phase 4 line 41.5kw	380v 3phase 4 line 43.5kw
Machine Weight	15000kg	15500kg	16500kg
Machine Size	14000x6000x2400mm	14000x6000x2400mm	16100x6500x2400mm

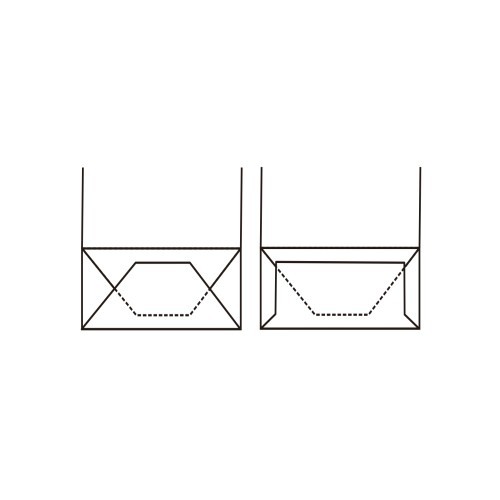

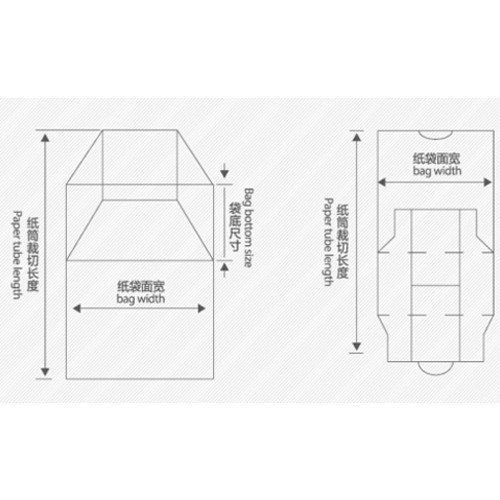

Bottom shape drawing
